Blade dampers

Caracteristics

The RV dampers are especially designed to operate in hot gas and smoke ducts with or without dust
There sections are square or rectangular.

RVX dampers have two or more louvres to reduce the overal dimension and for a good regulation

RV :
- Dimensions : from 250 x 250mm to 3000 x 3000mm (other dimensions on demand)
- Operating temperature : max. 750°C
- resistant to abrasion

RVX :
- Dimensions : dimensions on demand
- Operating temperature : max. 750°C
- resistant to abrasion

RV 150 / RVX 150

The RVX 150 damper is designed to operate in hot gas and smoke ducts.

- Temperature up to 150°C
- Abrasion

X indicates the number of blades

- Download technical file RVX 150

info portfolio

RV10 150 750x2000 -  voir en grand cette image
RV10 150 750x2000
Multilouvre damper with 10 blades. Motorized by quarter turn pneumatic actuator.

RV 350 / RVX 350

The RV350 and RVX 350 dampers are designed for operations in hot gas and smoke ducts.

The RVX 350 damper is designed especially for regulation hot gas and smoke ducts.

- Temperature up to 350°C
- Gas with dust
- Abrasion

X indicates the number of blades

- Download technical file RV 350
- Download technical file RVX 350

info portfolio

RV2 350  -  voir en grand cette image
RV2 350
Damper with two independant electrical motor.
RV350 600x600 -  voir en grand cette image
RV350 600x600
Damper installed in an incinerator.
RV350 800x800 -  voir en grand cette image
RV350 800x800
Single louvre damper with pneumatic 1/4 turn actuator type double acting.
RV350 2500X700 -  voir en grand cette image

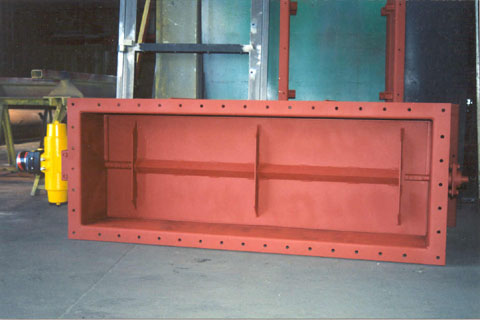

RV350 2500X700
Single louvre damper with pneumatic 1/4 turn actuator type single effect.
RV350 for fresh air  -  voir en grand cette image
RV350 for fresh air
Damper for fresh air with grid protection against birds.
RV350 3240x700 -  voir en grand cette image
RV350 3240x700
Damper designed to isolate the inlet of SCR in an incinerator
RV4 350 2500x2000 -  voir en grand cette image
RV4 350 2500x2000
Multi blades damper with electrical motor for regulation

RV 500 / RVX 500

The RV500 damper is designed for the most severe working conditions.

The RVX 500 damper is designed for the most severe working conditions, especially for regulation hot gas and smoke ducts.

- Temperature up to 500°C
- Gas with dust
- Abrasion

X indicates the number of blades

- Download technical file RV 500
- Download technical file RVX 500

info portfolio

RV500 1000x1000 -  voir en grand cette image
RV500 1000x1000
Damper motorized by 1/4 pneumatic actuator type single effect.
RV2 500 2000x4000 -  voir en grand cette image
RV2 500 2000x4000
Double blades damper with electrical motor.

RV 750 / RVX 750

The RV750 and RVX 750 dampers are designed for extreme working conditions.

- Temperature up to 750°C
- Gas with dust
- Abrasion

- Download technical file RV750

info portfolio

RV2 750 2400X1200 -  voir en grand cette image
RV2 750 2400X1200
Double-blades damper designed for a use at 700°C. a specific ceramic joint permits a maximal tightness.
RV2 750 2200x3000 -  voir en grand cette image
RV2 750 2200x3000
Installation of a high temperature damper
RV2 750 2200x3000 -  voir en grand cette image
RV2 750 2200x3000
Damper after installation
